Retard Chamber Model C-1

Penunda alarm akibat tekanan air tidak stabil.

Home/Product/Pipe System/Retard Chamber Model C-1

Komponen pendukung alarm check valve untuk menunda sinyal alarm agar tidak aktif akibat fluktuasi tekanan air yang tidak berbahaya.

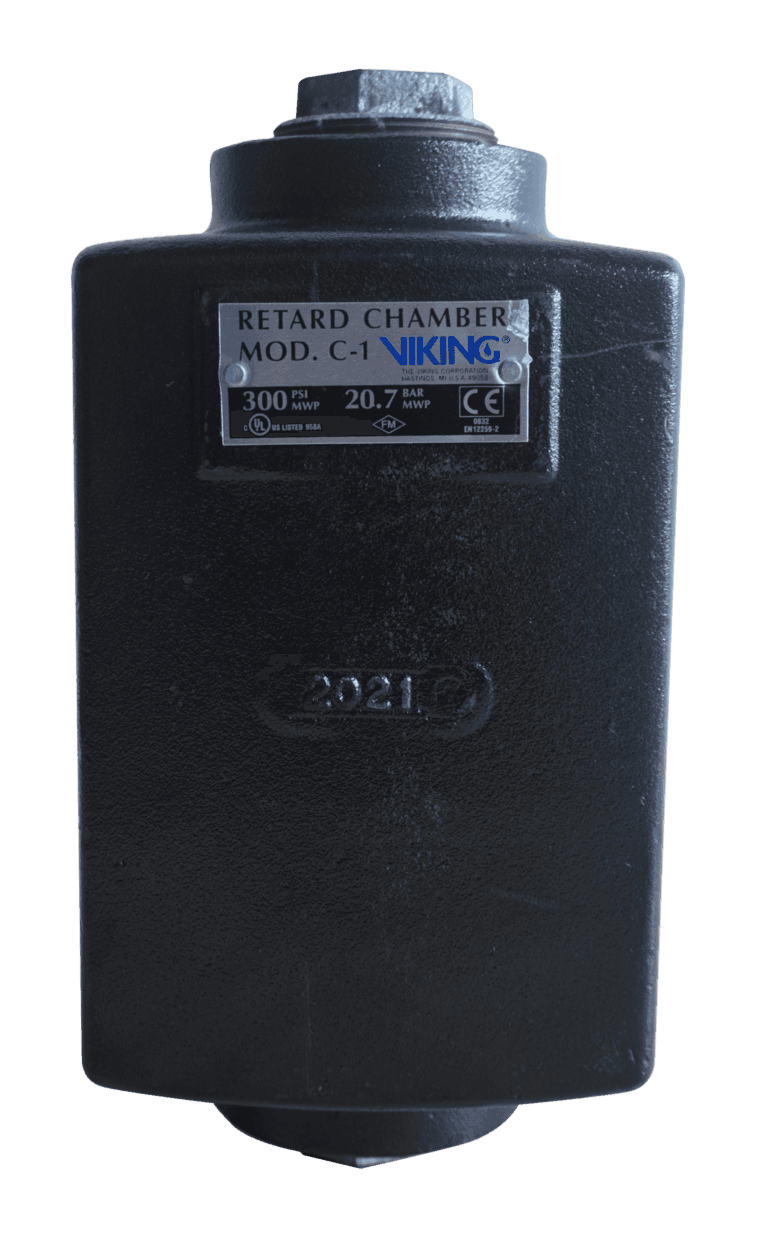

retard chamber

Description:

Model Viking C-1 Retard Chamber adalah tangki penahan tekanan yang digunakan bersama dengan Katup Pemeriksaan Alarm Viking untuk mengurangi kemungkinan alarm palsu akibat perubahan tekanan pada pasokan air.

ul logofm logo

Features:

  • 1. Ductile iron body
  • 2. Self draining
  • 3. Required Accessories:

    • a. P/N 01611A 1/8 inch (3.2 mm) Drain Restriction (included in Viking Alarm Check Valve Trim Sets designed for use with "variable pressure" water supplies).

    4. Optional Accessories:

    • a. P/N 01973A - Circuit closer vent assembly (Required when an electric Alarm Pressure Switch is installed without a Water Motor Alarm).
    • b. Alarm Devices: A Water Motor Alarm and/or electric Alarm Pressure Switch, with approved connected alarms, are required for a complete system.

Specifications:

  • Pressure Rating - 300 psi (20.7 bar) water working pressure.
  • Factory tested hydrostatically to 600 psi (41.4 bar).
  • Connections: ½” (15 mm) NPT inlet and 3/4” (20 mm) NPT outlet.
  • Capacity: 1 Gallon (4 Liters) Approx.

Material Standards:

  • Body: Ductile Iron 65-45-12.
  • Bushings: Cast Iron UNS-F12102
  • Coating: Viking black E-coat Spec SPF02 W01

Ordering Information:

  • Part Number - 05904B
  • Shipping Weight - 22lbs. (10 kg.)
  • Available Since - 1986

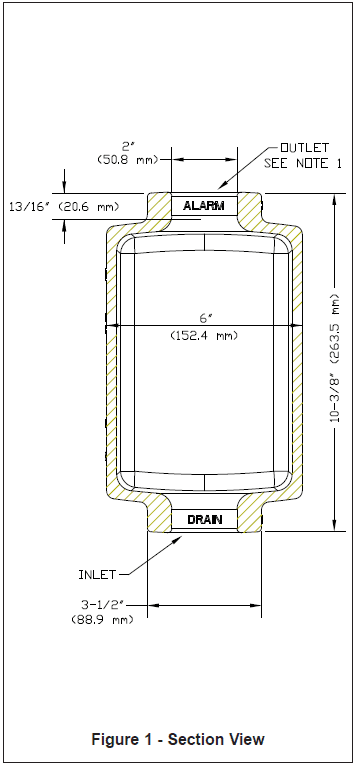

retard chamberretard chamber

Notes:

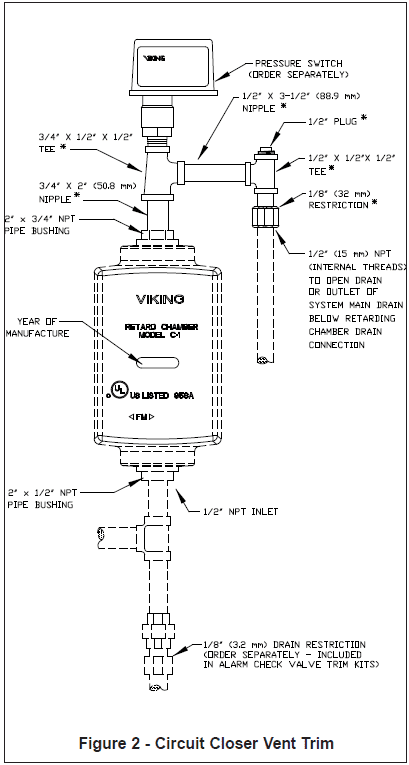

  • 1. Connect alarm line piping to the 3/4” (20 mm) outlet of the Retard Chamber. When using a Water Motor Alarm, a strainer is required. When using an electric Alarm Pressure Switch only, or when the alarm line piping is trapped, Circuit Closer Vent Trim is required.
  • 2. Items marked with * are included in the Viking Circuit Closer Vent Trim sets.
