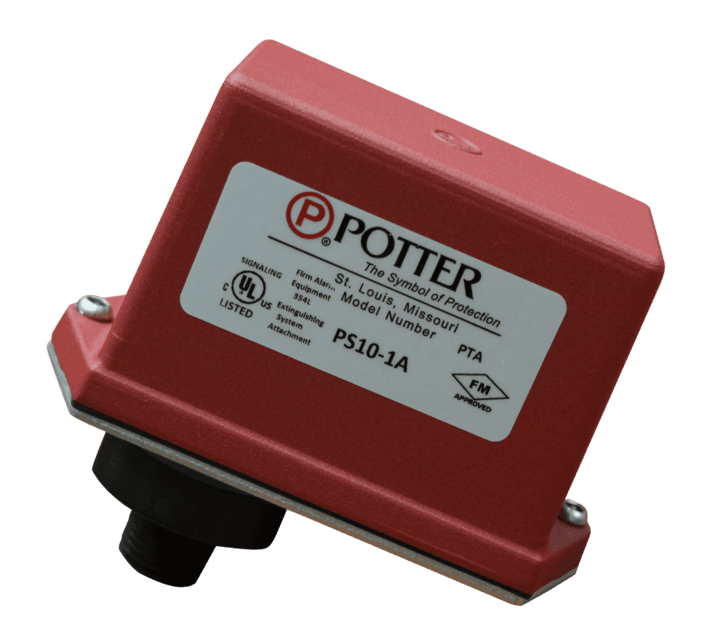

Model PS10A Pressure Switch

Sensor tekanan air untuk sistem alarm.

Home/Product/Pipe System/Model PS10A Pressure Switch

Pressure switch yang dirancang untuk memantau tekanan air dalam sistem sprinkler dan mengirim alarm saat tekanan naik atau turun di luar batas normal.

pressure valve
ul logofm logo

    Dimensions: 4 3/4" (12,1cm)W x 2 1/4" (5,7cm)D x 4 3/8" (11,1cm)H

    Enclosure:

    • Cover - Die-cast with textured red powdercoat finish
    • Base - Plated Steel

    Pressure Connection: 1/2" NPT Male

    Factory Adjustment:

    • Operates on Pressure increase at 6 ±1 PSI (0,41±0,07 BAR)
    • Operates on Pressure decrease at 5 ±1 PSI (0,35±0,07 BAR)

    Maximum Differential: 1 PSI (0,06 BAR)

    Maximum System Pressure: 250 PSI (17,2 BAR)

    Switch Contacts:

    • 15.0 Amps at 125/250VAC, 2.5 Amps at 30VDC
    • One set in PS10-1A, Two sets in PS10-2A

    Environmental Specifications:

    • Indoor or outdoor use
    • NEMA 4/IP55 Rated Enclosure - when used with proper conduit fittings
    • Temperature range: -40°F to 140°F (-40°C to 60°C) (Not for use in hazardous locations)

    Service Use:

    • Automatic Sprinkler ─ NFPA13
    • One or two family dwelling ─ NFPA13D
    • Residential occupancy up to four stories ─ NFPA13R
    • National Fire Alarm Code ─ NFPA72

    Tamper: Cover incorporates tamper resistant fasteners that require a special key for removal. One key is supplied with each device.
