Outside Screw and Yoke Gate (OS&Y) Valve

Katup utama dengan indikator visual.

Home/Product/Pipe System/Outside Screw and Yoke Gate (OS&Y) Valve

Katup pengontrol aliran dengan indikator posisi terbuka/tutup yang mudah terlihat.

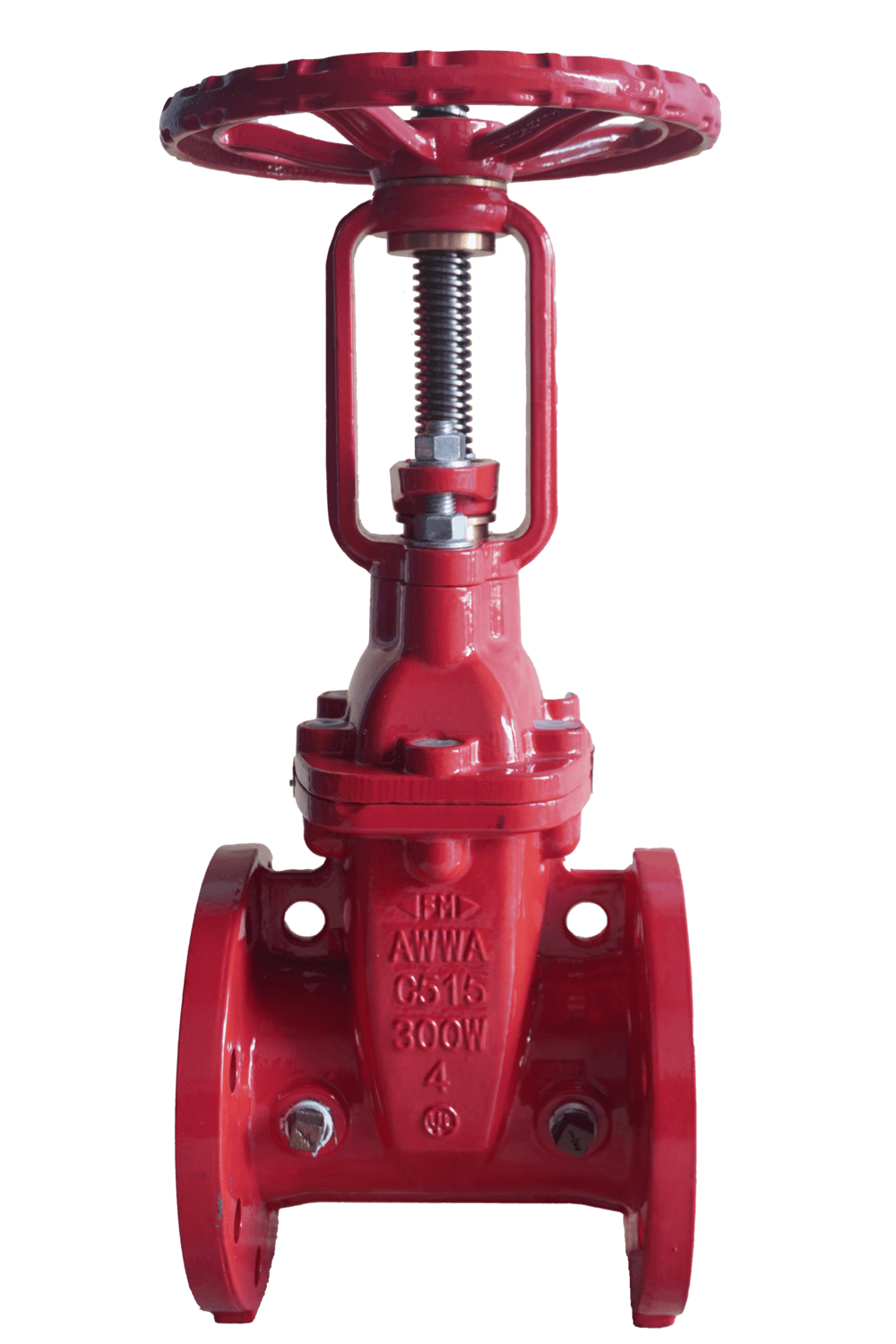

outside screw and yoke gate valve

Operation

Gate valves are manually operated multi-turn valves and are opened by a handwheel or other operating device, generally in a counter clockwise direction and then closed clockwise.

ul logofm logo

Technical Features:

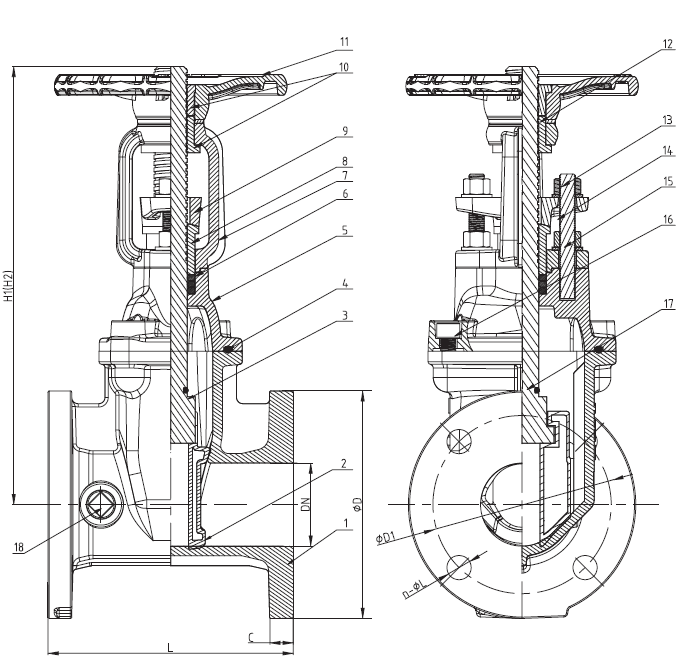

outside screw and yoke gate valve
  • Sizes available (Nominal) : 2”/DN50, 2½”/DN65, 3”/DN80, 4”/DN100, 5”/DN125, 6”/DN150, 8”/DN200, 10”/DN250 and 12”/DN300
  • Pressure data : Working pressure : 300 psi (21 bar)
  • Seat type : Working pressure : 300 psi (21 bar)
  • Finish : Fusion bonded epoxy coated internal and external
  • Connections : Flange diameter and thickness according to ANSI B16.1 Class 125, EN1092-2 PN10 or EN1092-2 PN16
  • Specifications : Design and dimensions conform to AWWA C515.
  • Features : Pre-notched, stainless steel stem for easy attachment of supervisory switch
  • Note : Size 5” is only UL listed

Download Catalog

Berikut booklet yang bisa Anda download

product catalog

Hooseki Fire Hydrant Equipment Catalogue

fire extinguisher catalog

Hooseki Fire Extinguisher Catalogue

fire alarm catalog

Hooseki Fire Alarm Systems Catalogue

valve catalog

Hooseki Valve for Fire Protection Catalogue
