Fire Alarm P.B.L Combination Series

Alarm kombinasi praktis dalam satu perangkat.

Home/Product/Fire Alarm/Fire Alarm P.B.L Combination Series

Perangkat alarm yang menggabungkan berbagai fungsi seperti indikator, suara, dan manual call point dalam satu unit.

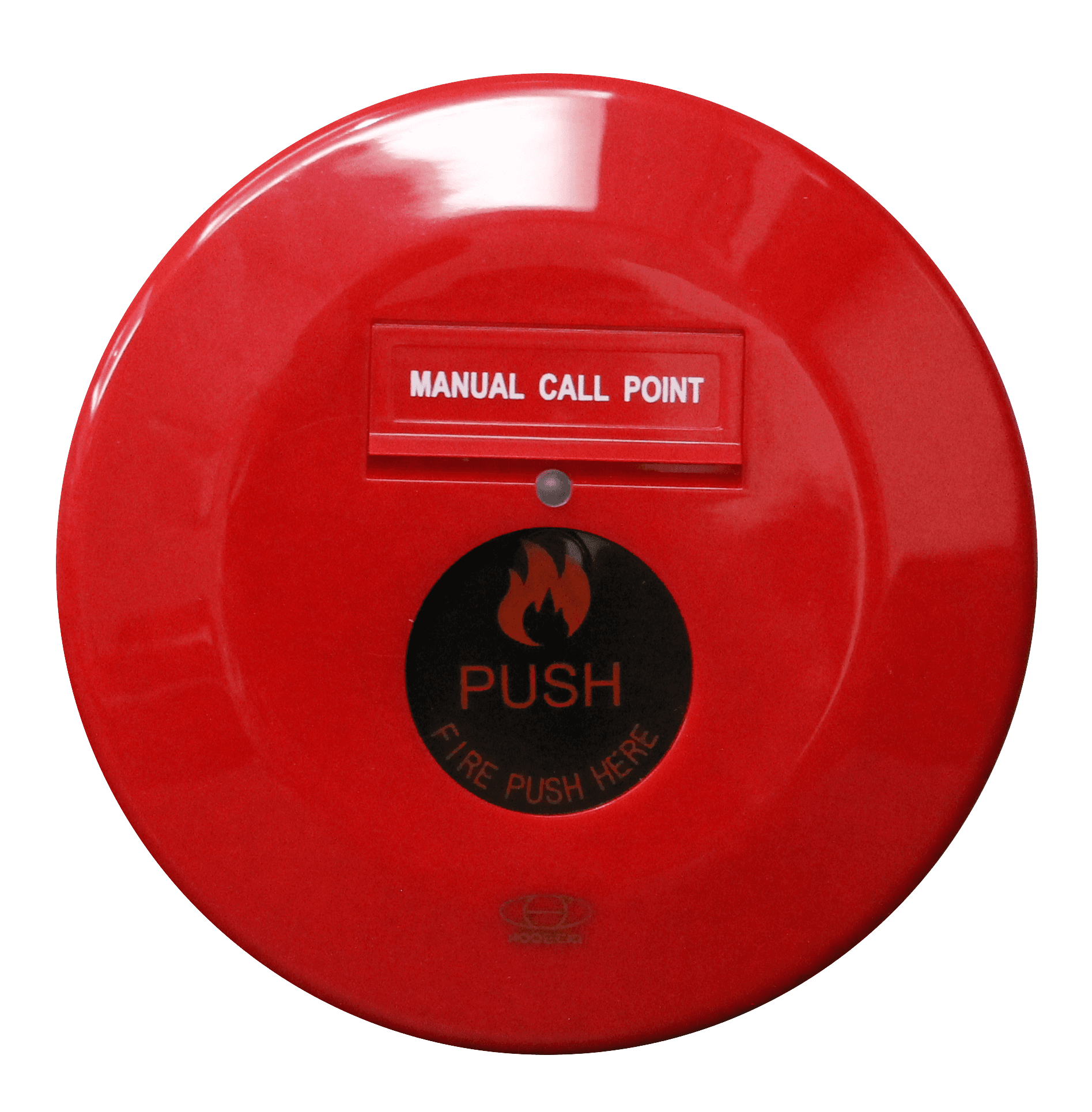

HS-FP1 Manual Call Point

This Fire Manual Station con quickly transmit a signal to the fire receiver terminals or the repeaters while the button under a transparent protective cover has been pushed at the first finding of a fire accident. (This signal is beyond the accumulated time limitation). There is a light over the button. The light will light up as a signal has been exactly received by the receiver terminal. There is also a telephone jock for telephone communication with attendant at the fire receiver terminal.

HS-FP1 Manual Call Point

Specifications:

Model No.HS-FPI
Voltage Range24V DC
Alarm Current30 mA
Contact Rating24V DC 100mA
Sub-FunctionPhone jack:
Confirmation LED;
Reset button
OptionBase
MaterialFire-Proof plastics
DimensionsO 140 (mm)
Weight150g
ColorRed

Advantages

1. Auto-Return by pushing button, no need to disassemble the main body.
2. Response light available to identify the operation completed.
3. Reinforced transparent protective cover is reusable.
4. All plastics are fire-proof, light, convenient and stylish.
5. Outside cord distribution with terminators to ease on work.

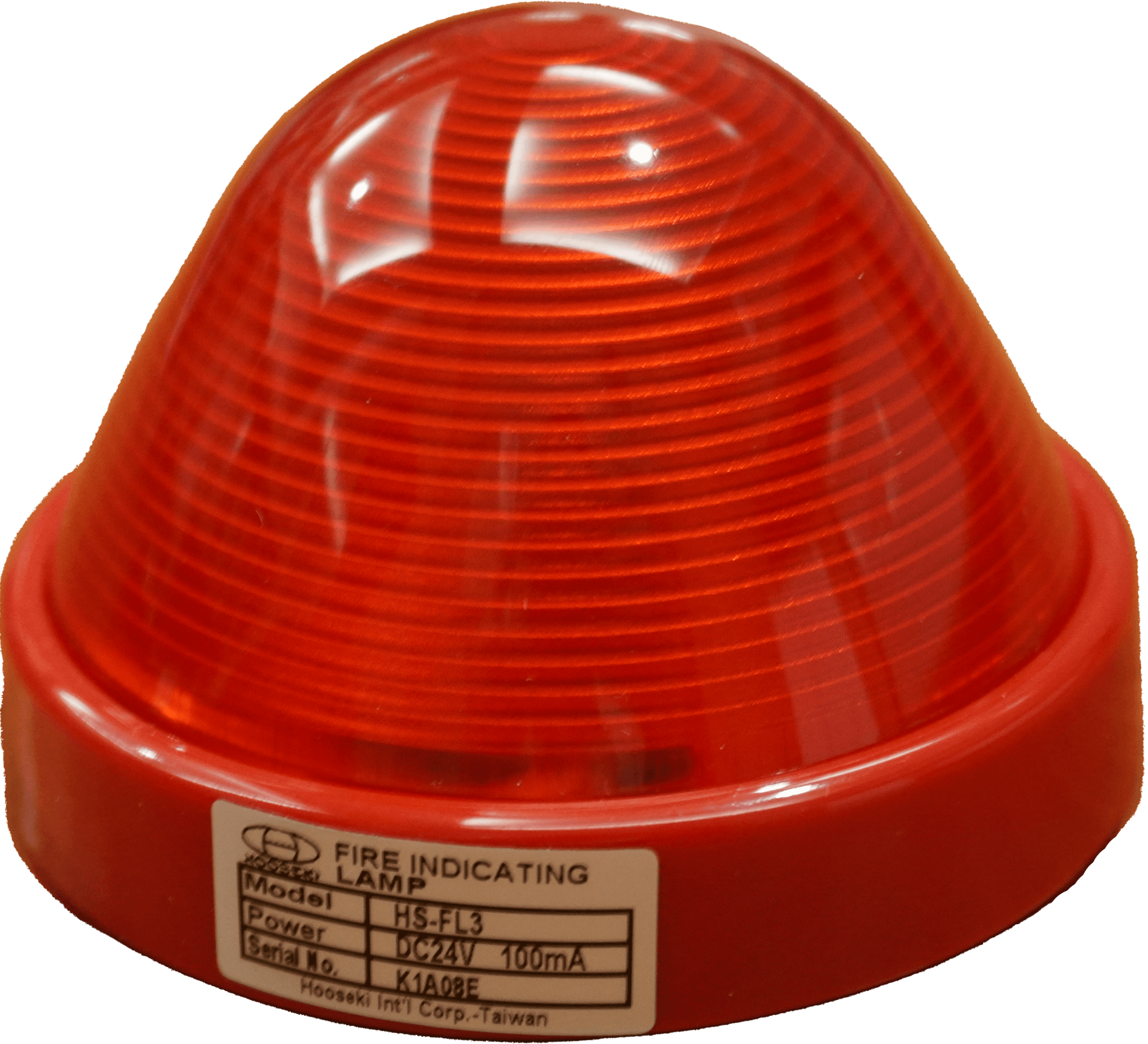

HS-FL3 Indicator Lamp LED

The Fire Indicating lamp is an equipment to go twinkling, to show the position of a fire signal device and to be controlled by fire receiver terminal or a repeater while a fire accident accured.

HS-FL3 Indicator Lamp LED

Specifications:

Model No.HS-FL3
Power Source24V DC
Alarm Current12 mA
Ambient Temp.-10°C~+55°C
MaterialFire-Proof plastics
Weight52g
Dimensions52g
ColorRed

HS-FB6 Alarm Bell FB6 24V

The fire alarm bell is an equipment controlled by the fire receiver terminal or the repeater and sounds a warning as a fire accident occured.

HS-FB6 Alarm Bell FB6 24V

Specifications:

Model No.HS-FB6
Power Source24V DC
Alarm Current35 mA
MovementMotor
Material3.0 Alloy Alu
Dimensions6” (150mm)
Weight418g
Sound Output90 dB/ M and above
ColorRed

Advantages

1. The way of motor-driven is taken of the low consumption of current, to reduce the load for power output from receiver terminal.
2. This design of exceptional structure is sturdy and durable. The bell even can ring to last 40 hours without decline of the performance and structure.
